Customize service
Left and right rudder can be converted
Superior Quality and High Reliability
All wearing parts are being replacedTires can be changed with new one according to customer needs.
TECHNICAL CHARACTERISTICS

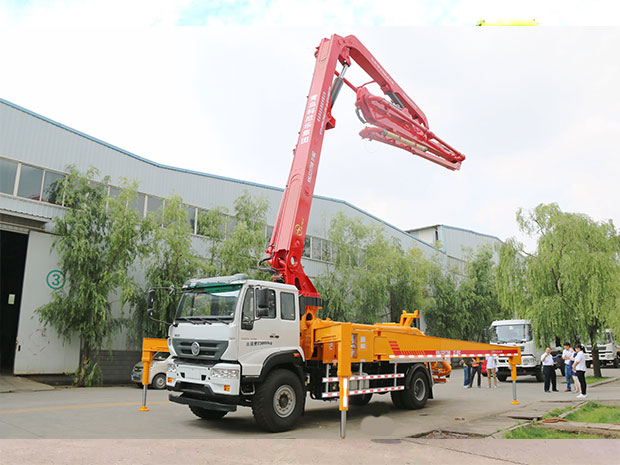

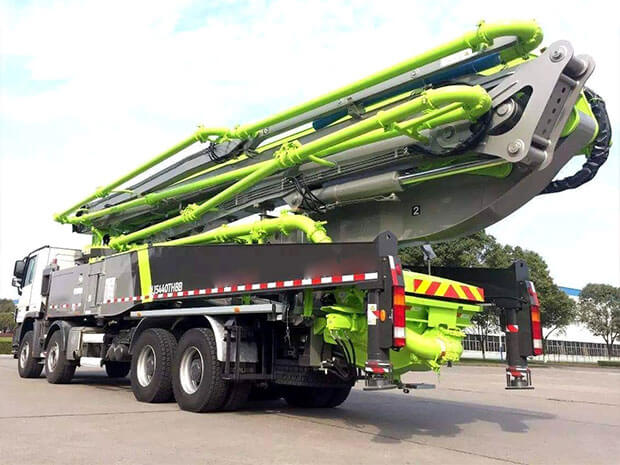

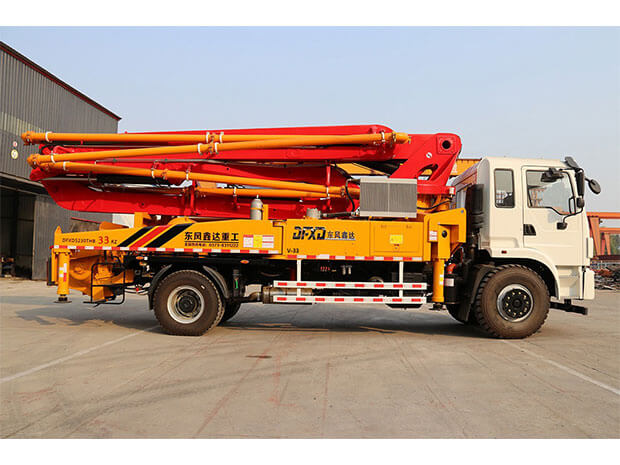

The concrete pump truck with flexible and efficient telescopic booms, small outrigger footprint, easy to move the vehicle. Automatic high and low pressure switch, can meet the demanding requirements of high standard long-distance transport of concrete. concrete pump truck combines high reliability, economy, safety and durability in one, reasonable matching chassis, power, electronically control and hydraulic pumping system. Hot sale 8*4/6*4 chassis concrete pump truck with high quality especially for overseas construction projects, low-rise buildings, ports, ideal for interior construction and other construction equipment occasions.
PERFORMANCE PARAMETER
| Model | JH | Units | JH50-18m | JH50-21m | JH53-24m |
| Pumping system | Max concrete discharging pressure | Mpa | 13/7.6 | 13/7.6 | 13/7.6 |
| Rated working pressure | Mpa | 31.5 | 31.5 | 31.5 |
| Pumping frequency | min-1 | 14/23 | 14/23 | 14/23 |
| Hopper capacity | m3 | 0.65 | 0.65 | 0.65 |
| Filling height | mm | 1500 | 1500 | 1500 |
| Hydraulic system form |
| Open | Open | Open |
| Distribution valve model |
| S tube valve | S tube valve | S tube valve |
| Oil tank diameter | mm | φ125 | φ125 | φ125 |
| Concrete cylinder diameter | mm | φ200 | φ200 | φ200 |
| Hydraulic oil cooling |
| Air cool | Air cool | Air cool |
| Placing boom | Max winding height | m | 21 | 21 | 24 |
| Arm number | section | 3 | 3 | 4 |
| Wheelbase | mm | 4500/4700 | 4700/5000 | 4700/5000 |
| Max motor power | kw/rpm | 132/2200 147/2200 | 132/2200 147/2200 | 132/2200 147/2200 |
| Effluent standard |
| China IV | EUIII | EUIII |
| Total weight | kg | 13500/14000 | 15500 | 16500 |
| Diameter (L*W*H) | mm | 9350×2500×3500 | 9450×2500×3500 | 9650×2500×3500 |
| Other | Hydraulic oil tank volume | L | 300 | 300 | 300 |
| Water tank capacity | L | 300 | 300 | 300 |
| Control system |
| Manual + Remote | Manual + Remote | Manual + Remote |
